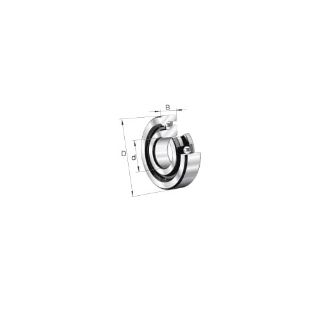

7602035-TVP FAG

Axial angular contact ball bearings are available as single, double or triple row ready-to-fit units. They are self-retaining and comprise thick-wall, geometrically stable outer rings, ball and cage assemblies and one-piece or two-piece inner rings. In several series, the outer ring has through holes for simple flange mounting to the adjacent construction. The bearing rings are matched to each other such that a defined preload is achieved when the rings are clamped in place using a precision locknut.

FAG Axial Angular Contact Ball Bearing, Series: 7602, 35 mm Bore Dia, 72 mm Outside Dia, 1 Row, 17 mm W, 60 deg Contact, Open Closure, 31500 N Dynamic/81000 N Static/3600 N Fatigue, Polyamide Cage, 5700 rpm Maximum, -30 to 120 deg C
