Home / 765.91.42 REX

765.91.42 REX

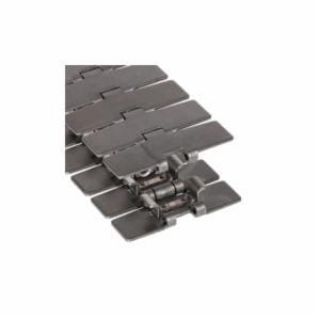

Picture of 765.91.42 REX
Actual Product May Vary From Image

Product Details

Manufacturer:
Rexnord
Manufacturer part number:
765.91.42
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$86.15 / FT

Description

Brand Name

Rexnord®

Type

1-Piece Side-Flexing

Description

881 series chains are 1-1/2 in pitch and have a top plate thickness of 0.12 in. Solid top chains have a smooth top and are versatile enough to convey everything from individual units as well as packaged and cased goods. Features TAB curve retention. Chain is available in either carbon steel or stainless steel for different applications. Chain is designed to operate on standard 881 series sprockets for true chain/sprocket interaction.
Rexnord® TableTop® Flat Top Conveyor Chain, 1-Piece Side-Flexing, Series: 881, 1-1/2 in Pitch, 1/4 in Pin Diameter, 1.67 in Pin Length, 4-1/2 in Plate Width, 0.12 in Plate Thickness, 24 in Minimum Side-Flex Radius, 1-1/2 in Minimum Back-Flex Radius, 625 lb Tensile Strength, 10 ft Overall Length, Carbon Steel

Application

Food Processing, Beverage, Unit Handling and Industrial Applications

Features

  • Engineered for a wide range of conveyor applications for many industries
  • Reduce container tipping and jams at transfer points
  • Side-flexing options for ease of installation, reduced floor space
  • TableTop® chain for high-strength and high-speed applications
  • A strong, abrasion-resistant, fine-grained, hardened carbon steel with a smooth finish
  • Used in applications requiring high strength, high impact resistance and a hardened chain surface such as part handling

Specifications

Material:Carbon Steel
Minimum Back-Flex Radius:1-1/2 in
Minimum Side-Flex Radius:24 in
Overall Length:10 ft
Pin Diameter:1/4 in
Pin Length:1.67 in
Pitch:1-1/2 in
Plate Thickness:0.12 in
Plate Width:4-1/2 in
Series:881
Tensile Strength:625 lb
