Home / 76W75-C LEV

76W75-C LEV

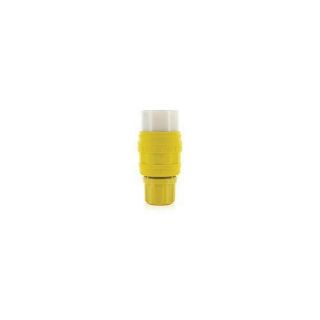

Picture of 76W75-C LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
76W75-C
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$169.35 / EA

Description

Brand Name

Leviton®

Type

3-Phase Grounding

Description

Leviton® Wetguard® Locking Connector, 3-Phase Grounding Watertight Cable Mount, 250 VAC, 20 A, 3 Poles, 4 Wires, NEMA L15-20R, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 3/8 to 7/8 in Cord Dia, -40 to 60 deg C, Screw Terminal, TPV, Yellow, 2.31 in Dia x 4.68 in L

Application

For single inlet

Standards

ANSI C73 | CSA C22.2 No.42 File No. LR406 | NOM 057 | NEMA WD1/WD6 | UL 498 | UL94 V-2 Flammability Rating

Specifications

Amperage Rating:20 A
Color:Yellow
Cord Diameter:3/8 to 7/8 in
Country of Origin:MX
Dimensions:2.31 in Dia x 4.68 in L
Enclosure:NEMA 4/4X/12/IP66
Grade:Industrial
Material:TPV
NEMA Rating:NEMA L15-20
Number of Poles:3
Number of Wires:4
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Voltage Rating:250 VAC
