773032D02F030 WOO

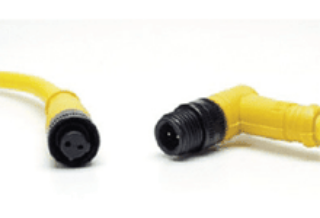

Picture of 773032D02F030 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex (Woodhead)
Manufacturer part number:
773032D02F030
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$44.04 / EA

Description

Brand Name

Brad®

Type

Double Ended

Description

Micro-Change® (M12) connectors are designed to withstand harsh-industrial and weather environments with superior quality that assures very reliable connections for control elements in automated equipment. These high-quality connectors allow fast and simple replacement of sensors, encoders, switches and other input and output devices in industrial machinery.
Brad® Micro-Change® Woodhead® Cordset, Double Ended, Series: 120073, Straight Female x 90 deg Male Connector, 1/2-20 UNF Connector, PVC Connector, 22 AWG Cable, 0.91 m Cable Length, PVC Cable, 3 Pole, Dual Keyway, 250 VAC/VDC, 4 A, Black/Green/Red/White/Yellow Wire Pin

Application

Construction and Mining Equipment, Sensors, Machine Lighting, Standard Industrial Lighting, C4ISR, Ground Vehicle Networks, Shelters, Automated Assembly Equipment, Conveyor Systems, Material Handling, Packaging Equipment and Pick and Place Robots

Standards

CSA File No. LR6837 | UL 2661 File No. E152210

Features

  • M12 design meets IEC specifications industry standard interface compatible with a wide array of sensors and switches
  • Ideal for class 2 power and network circuit applications
  • Provides a longer lasting, high performance electrical contact
  • Prevents the coupler from loosening even under extreme vibration
  • Robust housing provides superior electro magnetic interference (EMI) and radio frequency interference (RFI) protection
  • Watertight panel mount design, enables enclosure meets NEMA 6P and IP67 protection
  • Copper alloy contact, black epoxy coated zinc coupling nut, nitrile rubber O-ring, gold over nickel plating mating
  • Auto color code 2P to 6P

Specifications

Amperage Rating:4 A
Cable Length:0.91 m
Cable Material:PVC
Cable Type:22 AWG
Connector Material:PVC
Connector Size:1/2-20 UNF
Connector Type:Straight Female x 90 deg Male
Country of Origin:MX
Keyway:Dual
Number of Poles:3
Series:120073
Voltage Rating:250 VAC/VDC
Wire Pin Colors:Black/Green/Red/White/Yellow
