773033D02F060 WOO

Name: 773033D02F060 WOO
Brand: Molex (Woodhead)
SKU: 773033D02F060 WOO
Price: 59.23 USD
Availability: OutOfStock

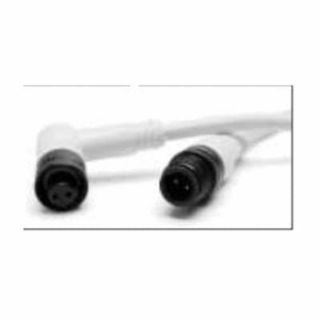

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex (Woodhead)

Manufacturer part number:

773033D02F060

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$59.23 / EA

Description

Brand Name

Woodhead®

Type

Double End

Description

Woodhead® Micro-Change® Cordset, Double End, Series: 120073, Female x Male Connector, 1/2-20 UNF Connector, PVC Connector, 6 ft Cable Length, PVC Cable, 3 Pole, 2 Keyway, 250 VAC/VDC, 4 A, 90/90 deg Angle, Black/Green/Red/White Wire Pin, NEMA 6P/IP68 NEMA Rating

Standards

UL Listed | CSA Certified | CE Marked | RoHS Compliant | PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Features

-20 to 105 deg C ambient operating temperature
Nylon 6/6 connector face
Nitrile rubber o-ring
Zinc die cast w/ black epoxy coat, optional stainless steel type 303, non-metallic white delrin coupling nut
Green ground, red black trace, red white trace wire pins

Specifications

Amperage Rating:	4 A
Angle:	90/90 deg
Cable Length:	6 ft
Cable Material:	PVC
Connector Material:	PVC
Connector Size:	1/2-20 UNF
Connector Type:	Female x Male
Keyway:	2
NEMA Rating:	NEMA 6P/IP68
Number of Poles:	3
Series:	120073
Voltage Rating:	250 VAC/VDC
Wire Pin Colors:	Black/Green/Red/White
