77364-2 TKN

Name: 77364-2 TKN
Brand: Timken
SKU: 77364-2 TKN
Price: 888.07 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

77364-2

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$888.07 / EA

Description

Brand Name

Timken®

Type

Single

Description

Timken® is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With the ability to support high radial and axial loads, high-performance Timken® double row tapered roller bearing components are engineered to provide the greatest durability in the most compact space.

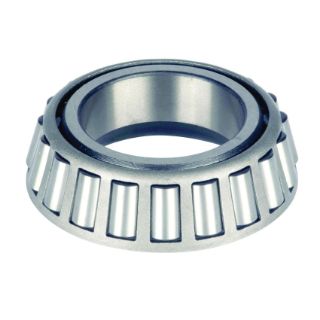

Timken®, 77364-2, Tapered Roller Bearing Cone, Single, Series: 77000, 3-5/8 in Bore, 1.9 in Cone Width, 1/4 in Maximum Shaft Fillet Radius, For Use With: Type TS Single Row Tapered Roller Bearing, 76400 lb Dynamic/107000 lb Static Load, Steel Cage, -65 to 250 deg F

Application

Vehicle Front Wheels, Differential and Pinion Configurations, Conveyor Rolls, Machine Tool Spindles, Trailer Wheels and General Purpose Applications

Standards

ABMA Class 2 | ANSI Standard

Features

Both rings should be replaced at the same time to maximize reliability and life

Specifications

Bore Diameter:	3-5/8 in
Cage Material:	Steel
Cone Width:	1.9 in
Load Capacity:	76400 lb Dynamic/107000 lb Static
Maximum Shaft Fillet Radius:	1/4 in
Series:	77000
Suitable For Use With:	Type TS Single Row Tapered Roller Bearing
Temperature Rating:	-65 to 250 deg F
