774000 IDE

Name: 774000 IDE
Brand: Ideal Industries
SKU: 774000 IDE
Price: 34.30 USD
Availability: OutOfStock

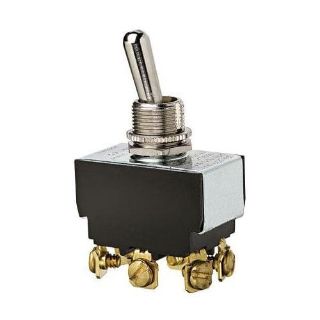

Actual Product May Vary From Image

Product Details

Manufacturer:

Ideal Industries

Manufacturer part number:

774000

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$34.30 / EA

Description

Brand Name

IDEAL®

Type

Heavy Duty

Alternate Supplier #

Grainger - 1XWT1
Fastenal - 0713540

Description

IDEAL® Toggle Switch, Heavy Duty, 125/227 VAC, 20/10 A, 1-1/2 hp Power, DPDT ON-OFF-ON Contact Configuration, Factory Tested 100000 Cycles to 21 A 14.8 VDC Contact, 2 Pole, Toggle Actuator, Screw Terminal, 100000 Cycles Operating Cycles, Solid Brass, Environmental Conditions: 32 to 185 deg F Operating Temperature, 1.3 in L x 0.76 in W x 0.8 in H Dimensions

Application

Power Tool and Motor Control Switch Applications

Standards

RoHS Compliant | CSA Certified | UL Recognized

Features

Rugged long wearing solid brass/nickel plated bushings
1/2 in diameter mounting hole

Specifications

Actuator:	Toggle
Amperage Rating:	20/10 A
Contact Configuration:	DPDT ON-OFF-ON
Contact Rating:	Factory Tested 100000 Cycles to 21 A 14.8 VDC
Country of Origin:	CN
Dimensions:	1.3 in L x 0.76 in W x 0.8 in H
Environmental Conditions:	32 to 185 deg F Operating Temperature
Material:	Solid Brass
Number of Poles:	2
Operating Cycles:	100000 Cycles
Power Rating:	1-1/2 hp
Terminal Type:	Screw
Voltage Rating:	125/227 VAC
