774011 IDE

Name: 774011 IDE
Brand: Ideal Industries
SKU: 774011 IDE
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Ideal Industries

Manufacturer part number:

774011

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

BUCHANAN

Type

Standard

Alternate Supplier #

Grainger - 4FRL6
Fastenal - 0713553

Description

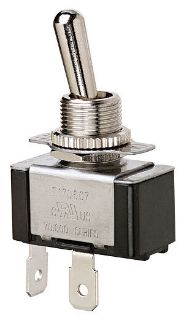

BUCHANAN Toggle Switch, Standard, 125/227 VAC, 20/10 A, 3/4 hp Power, SPST ON-OFF Contact Configuration, 21 A at 14.8 VDC Contact, 1 Pole, Toggle Actuator, Screw Terminal, 100000 Cycles Operating Cycles, Solid Brass, Environmental Conditions: 32 to 185 deg F Operating Temperature, 1.13 in L x 0.57 in W x 0.61 in H Dimensions

Application

Power Tool and Motor Control Switch Applications

Standards

RoHS Compliant | CSA Certified | UL Recognized

Features

Rugged long wearing solid brass/nickel plated bushings
1/2 in diameter mounting hole

Includes

On/Off Faceplate

Specifications

Actuator:	Toggle
Amperage Rating:	20/10 A
Contact Configuration:	SPST ON-OFF
Contact Rating:	21 A at 14.8 VDC
Country of Origin:	CN
Dimensions:	1.13 in L x 0.57 in W x 0.61 in H
Environmental Conditions:	32 to 185 deg F Operating Temperature
Material:	Solid Brass
Number of Poles:	1
Operating Cycles:	100000 Cycles
Power Rating:	3/4 hp
Terminal Type:	Screw
Voltage Rating:	125/227 VAC
