774015 IDE

Name: 774015 IDE
Brand: Ideal Industries
SKU: 774015 IDE
Availability: OutOfStock

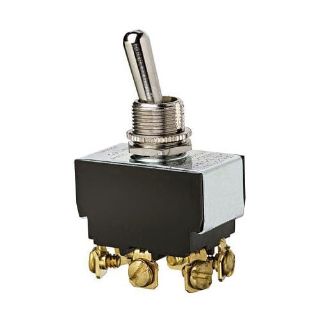

Actual Product May Vary From Image

Product Details

Manufacturer:

Ideal Industries

Manufacturer part number:

774015

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

IDEAL®

Type

Heavy Duty

Alternate Supplier #

Grainger - 1XWR4

Description

IDEAL® Toggle Switch, Heavy Duty, 125/227 VAC, 20/10 A, 1-1/2 hp Power, DPDT ON-ON Contact Configuration, Factory Tested 100000 Cycles to 21 A 14.8 VDC Contact, 2 Pole, Toggle Actuator, Screw Terminal, 100000 Cycles Operating Cycles, Solid Brass, Environmental Conditions: 32 to 185 deg F Operating Temperature, 1.3 in L x 0.76 in W x 0.8 in H Dimensions

Application

Power Tool and Motor Control Switch Applications

Standards

RoHS Compliant | CSA Certified | UL Recognized

Features

1/2 in diameter mounting hole
Great for power tool and motor control switch applications
Rugged long-wearing solid brass/nickel-plated bushings
Dielectric Strength 1500 V
Mechanical Life 100000 cycles
Operating Temperature 32 deg F to 185 deg F

Specifications

Actuator:	Toggle
Amperage Rating:	20/10 A
Contact Configuration:	DPDT ON-ON
Contact Rating:	Factory Tested 100000 Cycles to 21 A 14.8 VDC
Country of Origin:	CN
Dimensions:	1.3 in L x 0.76 in W x 0.8 in H
Environmental Conditions:	32 to 185 deg F Operating Temperature
Material:	Solid Brass
Number of Poles:	2
Operating Cycles:	100000 Cycles
Power Rating:	1-1/2 hp
Terminal Type:	Screw
Voltage Rating:	125/227 VAC
