Name: 774111 IDE
Brand: Ideal Industries
SKU: 774111 IDE
Availability: OutOfStock

774111 IDE

Actual Product May Vary From Image

Product Details

Manufacturer:

Ideal Industries

Manufacturer part number:

774111

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

IDEAL®

Type

Heavy Duty

Description

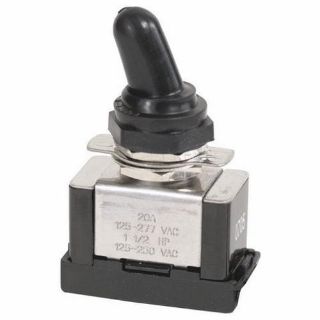

IDEAL® Toggle Switch, Heavy Duty, 125 VAC, 277 VDC VAC/VDC, 20 A, 50/60 Hz Frequency, 1-1/2 hp Power, SPST Contact Configuration, 21 A at 14.8 VDC Contact, 1 Pole, ON/OFF Actuator, Lead Wire Terminal, 100000 Cycles Operating Cycles, Brass, 1.18 in L x 0.68 in W x 0.75 in H Dimensions

Application

For power tool and motor control switch applications

Standards

CSA Certified | UL Recognized

Features

2 terminal
Rugged long-wearing solid brass/nickel-plated bushings
1/2 in diameter mounting hole
1500 V dielectric strength
32 to 185 deg F operating temperature

Specifications

Actuator:	ON/OFF
Amperage Rating:	20 A
Contact Configuration:	SPST
Contact Rating:	21 A at 14.8 VDC
Country of Origin:	US
Dimensions:	1.18 in L x 0.68 in W x 0.75 in H
Frequency Rating:	50/60 Hz
Material:	Brass
Number of Poles:	1
Operating Cycles:	100000 Cycles
Power Rating:	1-1/2 hp
Terminal Type:	Lead Wire
Voltage Rating:	125 VAC, 277 VDC VAC/VDC
