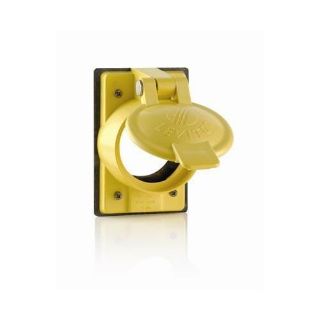

7788-CR LEV

Product Details

Manufacturer part number:
7788-CR
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Leviton®

Type

Self-Closing Lid

Description

Leviton® full line of raintight and weather-resistant covers are ruggedly constructed to seal out moisture, dust, debris and insects, while providing easy access to receptacles. Industrial grade covers are designed for rugged conditions. Their sturdy, gasketed covers mount vertically or horizontally. Leviton® makes two innovative raintight while-in-use Covers: telescoping and metal. Designed for decks, patios, porches and similar locations, they're more than a match for the vagaries of weather. The telescoping cover sports a low profile when in the contracted position, while the metal cover features a self-closing lid made of powder-coated cast zinc. Leviton® weather-resistant covers let homeowners use power tools, trimmers, sprinkler systems and pumps with confidence and safety. They're also ideal for outdoor security, landscape, accent and holiday lighting.
Leviton® Cover, 1 Outlets, 1 Gangs, 2.15 in Dia, 4.76 in Length, 3.26 in Width, 2-5/16 in D, Receptacle Cover, FS Box Mount, Cast Aluminum, Powder Coated, Yellow

Application

Food/Beverage, Processing Facilities, Outdoor Pools/Hot Tubs, Landscape Lighting, Vending Machines and Portable Power

Standards

CSA LR-16347 | NEMA 3R/IP64 | UL E-13397

Features

  • Vertical self-closing lid constructed of glass filled thermoplastic provides ultimate impact resistance for use in abusive environments
  • Molded in label area on cover allows for circuit or ratings identification
  • Pre-assembled gasket provides an easier installation and tighter seal from harsh elements
  • Stainless steel mounting screws and springs offer added corrosion resistance
  • NEMA Type 3R and IP64 ratings with cover closed ensure protection for indoor and outdoor use
  • Covers may be held open with a hex key or pin to ease installation
  • For use with 50 A single locking receptacles

Includes

Food and Beverage Processing Facilities, Outdoor Pools and Hot Tubs, Landscape Lighting, Vending Machines and Portable Power

Specifications

Color:Yellow
Country of Origin:MX
Cover Type:Receptacle
Depth:2-5/16 in
Diameter:2.15 in
Finish:Powder Coated
Length:4.76 in
Material:Cast Aluminum
Mounting Orientation:Vertical
Mounting Type:FS Box
Number of Gangs:1
Number of Outlets:1
Width:3.26 in
