77W47A123GF WOO

Name: 77W47A123GF WOO
Brand: Molex (Woodhead)
SKU: 77W47A123GF WOO
Availability: OutOfStock

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

77W47A123GF

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Woodhead®

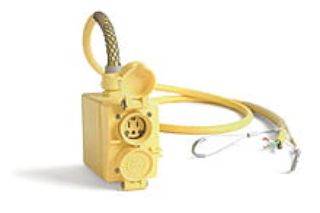

Woodhead® Multiple Outlet Pendant Box, Series: 130138, 125 VAC, 20 A, NEMA 4 Enclosure, NEMA L5-20 NEMA Rating, Rubber

Neotex® paracril OZO rubber portable pendant drop yields the best performance for abrasion, chemical exposure and temperature extremes
Pre-wired, one or two industrial duty, single receptacles recessed for indoor or outdoor use designed to save you time
Watertite® receptacles certified to provide protection for damp or wet locations and keep personnel safe
MAX-LOC® non-metallic strain-relief included as standard to provide maximum cord pull-out resistance atop the pendant
Woodhead® hanging double eye support grip included for ease of installation
High-performance SOOW cords are standard for optimum performance
When properly mated with a Woodhead® Watertite® plug the connector or receptacle connection meets the requirements of NEMA type 4X
25 ft length and 0.6 in diameter cord, 12/3 SOOW cord
F3 body 3/4 in cord grip
Portable mounting style
Nylon industrial duty receptacles
Stainless steel cover face screws and cover springs
Heavy-duty MAX-LOC® nylon mesh and F3 3/4 in compression nut strain-relief, pendant
Two single receptacles, flip lids
Double eye wire mesh support grip
50/60 Hz frequency
Manual GFCI reset
