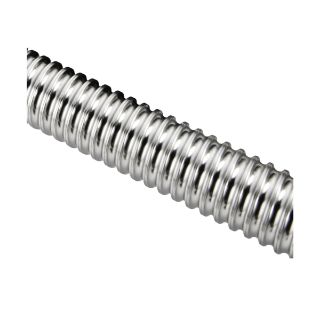

Actual Product May Vary From Image

7820431 THO

Name: 7820431 THO
Brand: Thomson Industries
SKU: 7820431 THO
Availability: OutOfStock

Thomson BSA™ 7820431 Legacy Rolled Thread Ball Screw, 1.15 in Dia Screw, 0.2 in, Left Hand Thread, 192 in L, 1.005 in Dia Root, 1 Starts

Manufacturer: Thomson Industries

Manufacturer part number: 7820431

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Thomson BSA™

Type

Rolled Thread

Description

The ball screw drive is an assembly that converts rotary motion to linear motion. It consists of a ball screw and a ball nut packaged as an assembly with recirculating ball bearings. The interface between the ball screw and the nut is made by ball bearings which roll in matching ball forms. With rolling elements, the ball screw drive has a very low friction coefficient and is typically greater than 90% efficient. The forces transmitted are distributed over a large number of ball bearings, giving a low relative load per ball comparatively.

Thomson BSA™ Ball Screw, Rolled Thread, Series: Legacy, 1.15 in Screw Diameter, 0.2 in Thread Lead, Left Hand Thread, 1.005 in Root Diameter, 192 in Length, 1 Starts, Steel, Manganese Phosphate

Application

Aircraft and Vehicle Construction, Injection Molding, Medical Devices, Pressing and Metal, Robotics and Factory Automation Fabrication Machines

Specifications

Country of Origin:	US
Finish:	Manganese Phosphate
Length:	192 in
Material:	Steel
Number of Starts:	1
Root Diameter:	1.005 in
Screw Diameter:	1.15 in
Series:	Legacy
Thread Direction:	Left Hand
Thread Lead:	0.2 in
