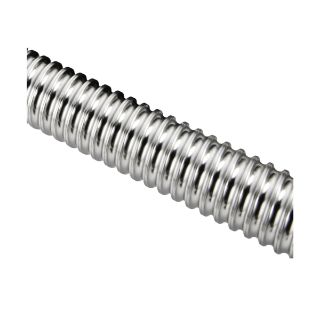

Picture of 7820432 THO
Actual Product May Vary From Image

7820432 THO

Thomson BSA™ 7820432 Precision Rolled Thread Ball Screw, 1.171 in Dia Screw, 0.413 in, Right Hand Thread, 192 in L, 0.87 in Dia Root, 1 Starts
Manufacturer: Thomson Industries
Manufacturer part number: 7820432
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Thomson BSA™

Type

Precision Rolled Thread

Description

The ball screw drive is an assembly that converts rotary motion to linear motion. It consists of a ball screw and a ball nut packaged as an assembly with recirculating ball bearings. The interface between the ball screw and the nut is made by ball bearings which roll in matching ball forms. With rolling elements, the ball screw drive has a very low friction coefficient and is typically greater than 90% efficient. The forces transmitted are distributed over a large number of ball bearings, giving a low relative load per ball comparatively.
Thomson BSA™ Ball Screw, Precision Rolled Thread, 1.171 in Screw Diameter, 0.413 in Thread Lead, Right Hand Thread, 0.87 in Root Diameter, 192 in Length, 1 Starts, Steel, Manganese Phosphate

Application

Aircraft and Vehicle Construction, Injection Molding, Medical Devices, Pressing and Metal, Robotics and Factory Automation Fabrication Machines

Features

  • Screw must be machined to fit into end support bearings
  • Screw can be ordered with ends machined, assembled with ball nuts or support bearings

Specifications

Country of Origin:US
Finish:Manganese Phosphate
Length:192 in
Material:Steel
Number of Starts:1
Root Diameter:0.87 in
Screw Diameter:1.171 in
Thread Direction:Right Hand
Thread Lead:0.413 in
