7820965 THO

Name: 7820965 THO
Brand: Thomson Industries
SKU: 7820965 THO
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Thomson Industries

Manufacturer part number:

7820965

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Thomson®

Type

Preloaded

Description

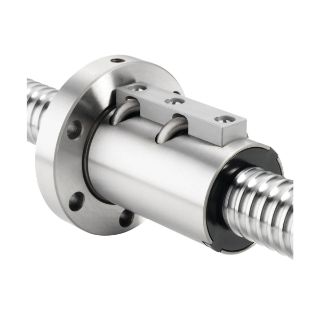

Thomson® Precision Plus Ground Ball Screw Assemblies provide the positioning accuracy and repeatability required for the most stringent positioning applications. They are designed and manufactured to provide 8 times the lead accuracy of conventional ball screws, and provide consistent, zero-backlash, preload for high repeatability. All ball nuts feature an integral flange for optimal precision and mounting ease, and specially designed seals/wipers that provide superior lubricant retention while keeping out harmful contaminants.

Thomson® Ball Screw and Nut Assembly, Preloaded, Series: Precision Plus, Right Hand Thread, 1/4 in Thread Lead, 1-1/2 in Screw Diameter, 120 in Screw Length, 5 in Nut Length, 4250 lb Dynamic/27250 lb Static Screw Load, Steel

Features

Screw must be machined to fit end supports
Long-lasting preload for minimal backlash and consistent stiffness
Screw must be machined to fit into end support bearings screws can be ordered with ends machined, assembled with support bearings

Includes

Round Ball Nut with Integral Flange and Wiper

Specifications

Country of Origin:	US
Material:	Steel
Nut Length:	5 in
Screw Diameter:	1-1/2 in
Screw Length:	120 in
Screw Load Capacity:	4250 lb Dynamic/27250 lb Static
Series:	Precision Plus
Thread Direction:	Right Hand
Thread Lead:	1/4 in
