7823587 THO

Preloaded ball nuts with integral flange provide higher-level positional accuracy and repeatability from a rolled screw assembly. These adjustable preload ball nuts feature precision ground internal threads, which enable smoother running, more consistent performance. The integral flange is held to high perpendicularity tolerances to ensure the load bearings are aligned to load to prevent unnecessary wear.

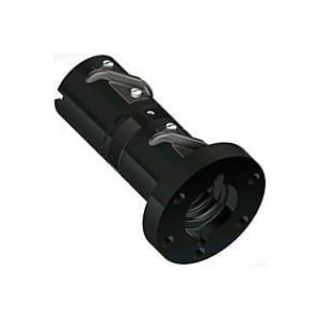

Thomson® Ball Nut, Type H Double Preloaded Round, 1.15 in Screw Diameter, 1.688 in OD, 1 Circuits, 3.821 in Nut Length, Right Thread, 0.2 in Thread Lead, 2-7/8 in Diameter Flange, 1/2 in Flange Thickness, 1185 lb Dynamic/13090 lb Static Load, For Use With: Precision Rolled Ball Screw, Steel
