7823589 THO

Name: 7823589 THO
Brand: Thomson Industries
SKU: 7823589 THO
Availability: OutOfStock

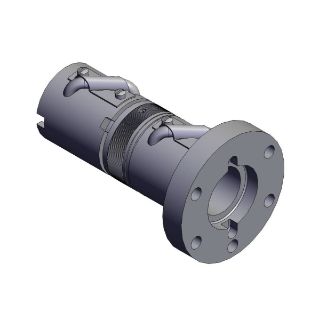

Actual Product May Vary From Image

Product Details

Manufacturer:

Thomson Industries

Manufacturer part number:

7823589

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Thomson®

Type

Type H Preloaded Round

Description

Preloaded ball nuts with integral flange provide higher-level positional accuracy and repeatability from a rolled screw assembly. These adjustable preload ball nuts feature precision ground internal threads, which enable smoother running, more consistent performance. The integral flange is held to high perpendicularity tolerances to ensure the load bearings are aligned to load to prevent unnecessary wear.

Thomson® Ball Nut, Type H Preloaded Round, Series: SAG Legacy, 2-1/4 in Screw Diameter, 3-3/8 in OD, 2 x 2 Circuits, 13.6888 in Nut Length, 3.137-12 Thread, Right Thread, 1/2 in Thread Lead, 5-3/8 in Diameter Flange, 1.582 in Flange Thickness, 21306 lb Dynamic/142660 lb Static Load, For Use With: SAG Legacy Precision Rolled Ball Screw, Steel

Standards

RoHS Compliant

Features

Ball nuts have profiled wiper rings to reduce the escape of lubricant and prevent the ingress of dirt
300 deg F operating temperature
Nut only, screw sold separately

Includes

Flange and Integral Wiper

Specifications

Country of Origin:	US
Flange Diameter:	5-3/8 in
Flange Thickness:	1.582 in
Load Capacity:	21306 lb Dynamic/142660 lb Static
Material:	Steel
Number of Circuits:	2 x 2
Nut Length:	13.6888 in
Outside Diameter:	3-3/8 in
Screw Diameter:	2-1/4 in
Series:	SAG Legacy
Suitable For Use With:	SAG Legacy Precision Rolled Ball Screw
Thread Direction:	Right
Thread Lead:	1/2 in
Thread Size:	3.137-12
