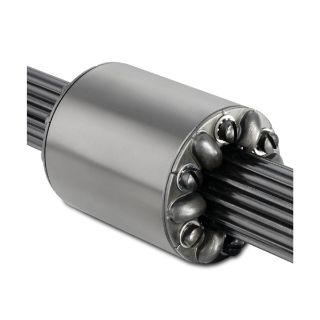

A Thomson® precision ball spline consists of mating inner and outer races containing concave axial races and a complement of bearing balls. The balls provide the only physical contact between the inner and outer races. Unlimited rolling travel is achieved by diverting the path of the balls at the extremes of the outer race into the end cap return circuit. This provides a closed loop through which the balls recirculate when the races are displaced axially relative to each other. The bearing balls resist radial displacement resulting from torque loads.

Thomson® Spline Outer Race, 5/8 in OD Spline, 2.035 in Length, 0.425 in Root Diameter, 6 Active Circuits, 0.187 in Diameter Nominal Ball, 120 Balls per Outer Race, 1/4 x 1/8 x 1-1/8 in Keyway, 1170 in-lb Dynamic/3540 in-lb Static Load, Steel
