7832779-P5 THO

Name: 7832779-P5 THO
Brand: Thomson Industries
SKU: 7832779-P5 THO
Availability: OutOfStock

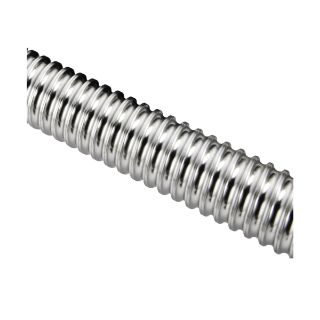

Actual Product May Vary From Image

Product Details

Manufacturer:

Thomson Industries

Manufacturer part number:

7832779-P5

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Thomson BSA™

Type

Rolled

Description

The ball screw drive is an assembly that converts rotary motion to linear motion. It consists of a ball screw and a ball nut packaged as an assembly with recirculating ball bearings. The interface between the ball screw and the nut is made by ball bearings which roll in matching ball forms. With rolling elements, the ball screw drive has a very low friction coefficient and is typically greater than 90% efficient. The forces transmitted are distributed over a large number of ball bearings, giving a low relative load per ball comparatively.

Thomson BSA™ FineLine Ball Screw, Rolled, Series: KGS, 20 mm Screw Diameter, 5 mm Thread Lead, Right Thread, 16.87 mm Root Diameter, 4000 mm Length, 1 Starts, Steel

Application

Aircraft and Vehicle Construction, Injection Molding, Medical Devices, Pressing and Metal, Robotics and Factory Automation Fabrication Machines

Features

3.5 mm ball
Screw must be machined to fit into end support bearings
Screw can be ordered with ends machined, assembled with ball nuts or support bearings
Our standard catalog ball screws feature a high luster polished and oiled finish, which provides, smoother operation, and a high quality look and feel

Specifications

Country of Origin:	DE
Length:	4000 mm
Material:	Steel
Number of Starts:	1
Root Diameter:	16.87 mm
Screw Diameter:	20 mm
Series:	KGS
Thread Direction:	Right
Thread Lead:	5 mm
