Name: 7832788 THO
Brand: Thomson Industries
SKU: 7832788 THO
Availability: OutOfStock

7832788 THO

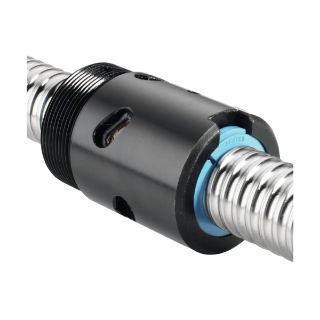

Actual Product May Vary From Image

Product Details

Manufacturer:

Thomson Industries

Manufacturer part number:

7832788

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Thomson®

Type

Type Threaded

Description

Thomson® Ball Nut, Type Threaded, Series: ZG Series, 25 mm Screw Diameter, 42 mm OD, 63.5 mm Nut Length, M40 x 1.5 Thread, Right Thread, 5 mm Thread Lead, 20.4 kN Dynamic/33.7 kN Static Load, For Use With: Precision Rolled Ball Screw and FineLine Precision Rolled Ball Screw, Steel

Standards

DIN 69051 | RoHS Compliant

Features

Z2 - no preload, clearance held to maximum 0.18 mm
Single liner return system
Ball nuts have profiled wiper rings to reduce the escape of lubricant and prevent the ingress of dirt
300 deg F operating temperature
Nut only, screw sold separately

Includes

Integral Plastic Wiper

Specifications

Country of Origin:	DE
Load Capacity:	20.4 kN Dynamic/33.7 kN Static
Material:	Steel
Nut Length:	63.5 mm
Outside Diameter:	42 mm
Screw Diameter:	25 mm
Series:	ZG Series
Suitable For Use With:	Precision Rolled Ball Screw and FineLine Precision Rolled Ball Screw
Thread Direction:	Right
Thread Lead:	5 mm
Thread Size:	M40 x 1.5
