7832803 THO

Name: 7832803 THO
Brand: Thomson Industries
SKU: 7832803 THO
Availability: OutOfStock

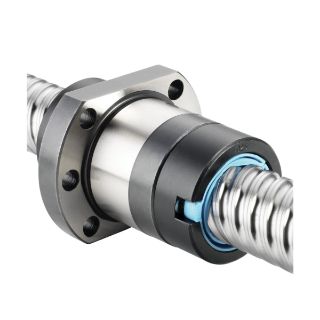

Actual Product May Vary From Image

Product Details

Manufacturer:

Thomson Industries

Manufacturer part number:

7832803

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Thomson®

Type

Type S

Description

Thomson® Ball Nut, Type S, Series: FH Series, 32 mm Screw Diameter, 56 mm OD, 83 mm Nut Length, Right Thread, 20 mm Thread Lead, 86 mm Diameter Flange, 12 mm Flange Thickness, 47.2 kN Dynamic/83.2 kN Static Load, For Use With: Precision Rolled Ball Screw and FineLine Precision Rolled Ball Screw, Steel

Standards

DIN 69051 | RoHS Compliant

Features

Z2 - no preload, clearance held to maximum 0.18 mm
End cap return system
Ball nuts have profiled wiper rings to reduce the escape of lubricant and prevent the ingress of dirt
300 deg F operating temperature
Nut only, screw sold separately

Includes

Flange and Integral Plastic Wiper

Specifications

Country of Origin:	DE
Flange Diameter:	86 mm
Flange Thickness:	12 mm
Load Capacity:	47.2 kN Dynamic/83.2 kN Static
Material:	Steel
Nut Length:	83 mm
Outside Diameter:	56 mm
Screw Diameter:	32 mm
Series:	FH Series
Suitable For Use With:	Precision Rolled Ball Screw and FineLine Precision Rolled Ball Screw
Thread Direction:	Right
Thread Lead:	20 mm
