7832809 THO

Name: 7832809 THO
Brand: Thomson Industries
SKU: 7832809 THO
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Thomson Industries

Manufacturer part number:

7832809

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Thomson®

Type

Type S Non-Preloaded

Description

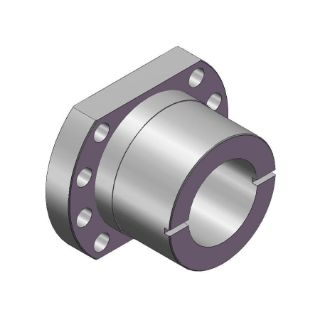

Thomson® Ball Nut, Type S Non-Preloaded, Series: FK Series, 40 mm Screw Diameter, 63 mm OD, 88.5 mm Nut Length, Right Thread, 10 mm Thread Lead, 93 mm Diameter Flange, 14 mm Flange Thickness, 64.9 kN Dynamic/109 kN Static Load, For Use With: NEFF™ Precision Rolled Ball Screw and FineLine Precision Rolled Ball Screw, Steel, Black Oxide

Application

Industrial and Transport Grade Applications

Standards

DIN 69051 | RoHS Compliant

Features

Z2 - no preload, clearance held to maximum 0.18 mm
Single liner return system
Ball nuts have profiled wiper rings to reduce the escape of lubricant and prevent the ingress of dirt
300 deg F operating temperature
Nut only, screw sold separately

Includes

Flange and Integral Plastic Wiper

Specifications

Country of Origin:	DE
Finish:	Black Oxide
Flange Diameter:	93 mm
Flange Thickness:	14 mm
Load Capacity:	64.9 kN Dynamic/109 kN Static
Material:	Steel
Nut Length:	88.5 mm
Outside Diameter:	63 mm
Screw Diameter:	40 mm
Series:	FK Series
Suitable For Use With:	NEFF™ Precision Rolled Ball Screw and FineLine Precision Rolled Ball Screw
Thread Direction:	Right
Thread Lead:	10 mm
