7833366 THO

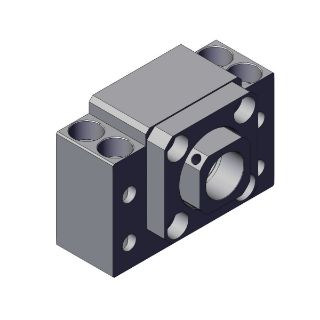

Picture of 7833366 THO
Actual Product May Vary From Image

Product Details

Manufacturer:
Thomson Industries
Manufacturer part number:
7833366
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$918.87 / EA

Description

Brand Name

Thomson®

Type

Fixed

Description

Thomson® introduces multiple ball screw end supports as low cost solutions when replacing existing competitive product offerings or for new applications. Use with the Inch series ball screw, metric series ball screws, or ball splines.
Thomson® Bearing Support, Fixed, Series: BK Series, 5.039 in Width, 3.504 in Height, 2.756 in Overall Thickness, 30 mm Bearing Bore, For Use With: 1-1/2 in Ball Screw, Steel

Features

  • The base mounted BK bearing support contains an angular contact bearing pair for increased stiffness and axial load capacity
  • Screw must be machined to fit into the block
  • Rugged steel construction
  • Base mounting configuration
  • Classified as fixed for purposes of critical speed and column strength calculations
  • Thomson® BK/BF base mounted supports are drop in replacements of THK bearing supports
  • Low profile compact design
  • Pre-assembled and ready for installation

Specifications

Bearing Bore:30 mm
Country of Origin:US
Height:3.504 in
Material:Steel
Overall Thickness:2.756 in
Series:BK Series
Suitable For Use With:1-1/2 in Ball Screw
Width:5.039 in
