7833373 THO

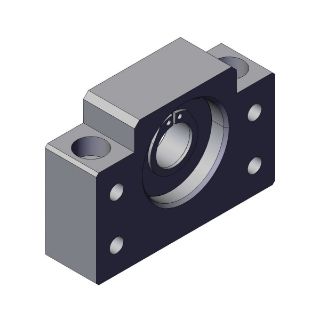

Picture of 7833373 THO
Actual Product May Vary From Image

Product Details

Manufacturer:
Thomson Industries
Manufacturer part number:
7833373
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$255.26 / EA

Description

Brand Name

Thomson®

Type

Floating

Description

Thomson® introduces multiple ball screw end supports as low cost solutions when replacing existing competitive product offerings or for new applications. Use with the Inch series ball screw, metric series ball screws, or ball splines.
Thomson® Bearing Support, Floating, Series: BF Series, 4.173 in Width, 3.15 in Height, 1.181 in Overall Thickness, 25 mm Bearing Bore, For Use With: 1.15 in/1-1/4 in/1-1/2 in Ball Screws, Steel

Features

  • Base mounted BF bearing support contains a floating radial bearing to allow axial shaft movement
  • Design dimensions fit standard type BF or BF1 end machining screw must be machined to fit into the block
  • Rugged steel construction
  • Base mounting configuration
  • Classified as simple for purposes of critical speed and column strength calculations
  • Thomson® BK/BF base mounted supports are drop in replacements of THK bearing supports
  • Low profile compact design
  • Pre-assembled and ready for installation

Specifications

Bearing Bore:25 mm
Country of Origin:US
Height:3.15 in
Material:Steel
Overall Thickness:1.181 in
Series:BF Series
Suitable For Use With:1.15 in/1-1/4 in/1-1/2 in Ball Screws
Width:4.173 in
