7833396 THO

Name: 7833396 THO
Brand: Thomson Industries
SKU: 7833396 THO
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Thomson Industries

Manufacturer part number:

7833396

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Thomson®

Type

Fixed

Description

Thomson® introduces multiple ball screw end supports as low cost solutions when replacing existing competitive product offerings or for new applications. Use with the Inch series ball screw, metric series ball screws, or ball splines.

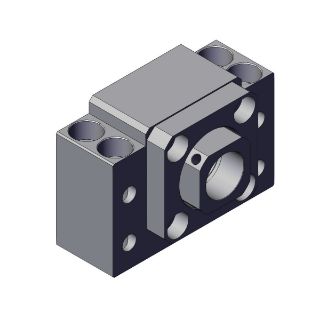

Thomson® Bearing Support, Fixed, Series: BK Series, 128 mm Width, 89 mm Height, 70 mm Overall Thickness, 30 mm Bearing Bore, For Use With: 40 mm Ball Screw, Steel

Features

The base mounted BK bearing support contains an angular contact bearing pair for increased stiffness and axial load capacity
Screw must be machined to fit into the block
Rugged steel construction
Base mounting configuration
Classified as fixed for purposes of critical speed and column strength calculations
Thomson® BK/BF base mounted supports are drop in replacements of THK bearing supports
Low profile compact design
Pre-assembled and ready for installation

Specifications

Bearing Bore:	30 mm
Country of Origin:	US
Height:	89 mm
Material:	Steel
Overall Thickness:	70 mm
Series:	BK Series
Suitable For Use With:	40 mm Ball Screw
Width:	128 mm
