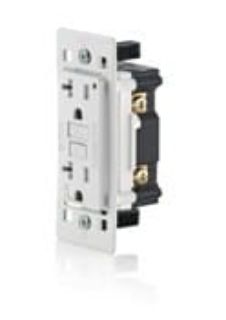

7899-C0I LEV

Name: 7899-C0I LEV
Brand: Leviton Manufacturing
SKU: 7899-C0I LEV
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

7899-C0I

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Leviton®

Type

Feed Through

Description

Leviton is the leading manufacturer of ground fault circuit Interrupters (GFCIs) in the electrical industry. Our renowned SmartlockPro brand offers a wide variety of Spec grade and hospital grade GFCIs to protect people from electrical shock in homes, offices hospitals, schools and outdoors. Built with a patented reset lockout feature that blocks the Reset button if GFCI protection has been compromised, the GFCIs meet the latest NEC and UL requirements. You'll find smart choices for every need, including tamper resistant, weather resistant, hospital grade, GFCI/switch or GFCI/guide light and pilot light combinations, as well as easy install slim versions and time saving Lev-Lok GFCIs. SmartlockPro GFCI protection teams with an LED guide light for safety in the dark. This combination is ideal for installation in home and hotel bathrooms. A photo sensor turns the energy-efficient, long life LED ON and OFF.

SmartlockPro® Lev-Lok® Cheetah Speed System™ GFCI Receptacle, Feed Through, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polycarbonate, Ivory

Application

Homes, Offices, Hospitals, Schools and Outdoor Applications

Standards

ANSI C73 | CSA C22.2 No. 42 File No. LR-57811 | NOM 057 | UL 943 File No. E48380/498 File No. E13399

Features

Automatically test the GFCI every time the RESET button is pushed in, GFCI will not reset if the GFCI circuit in not functioning properly
By blocking reset of the GFCI if protection has been compromised, SmartlockPro Slim GFCI reduces the possibility of end users incorrectly assuming that a reset GFCI outlet is providing ground fault protection when it actually is not
A line load reversal diagnostic feature is provided which prevents the GFCI from being reset and stops power from being fed to the GFCI receptacle face or through to downstream devices, a green LED indicator on the GFCI's face also illuminates to alert the installer to the line load wiring reversal
The trip latch mechanism in SmartlockPro GFCIs is a one-piece T design for efficient operation
There are 4-sets of contacts for load terminals and face, SmartlockPro GFCIs use a patented bifurcated bridge contact for efficient operation
Improved immunity to high frequency noise reduces nuisance tripping

Includes

Wallplate, Screws

Specifications

Amperage Rating:	20 A
Color:	Ivory
Country of Origin:	CN
Grade:	Hospital
Horsepower:	1 hp
Material:	Polycarbonate
NEMA Rating:	NEMA 5-20R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Back/Side Wire
Voltage Rating:	125 VAC
