7899-HGT LEV

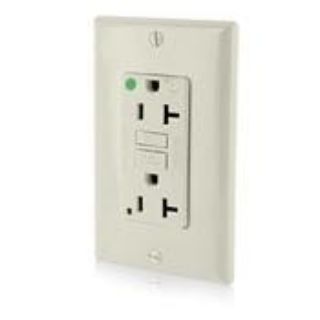

Picture of 7899-HGT LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
7899-HGT
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Leviton®

Description

Leviton® is the leading manufacturer of ground fault circuit interrupters (GFCIs) in the electrical industry. Available in Extra Heavy Duty Hospital and Commercial Spec Grade, they are ideal for a wide range of GFCI applications. Our large selection of GFCIs includes Tamper-Resistant (TR) GFCI devices that meet Section 406.11 of the 2008 code and help protect children from electrical shock. For the highest level of ground fault protection, install 2008 NEC code compliant Weather-Resistant GFCI (WR) receptacles, which meet UL 498 requirements. Built with UV stabilized engineering thermoplastic, the devices have high cold impact resistance and feature stainless steel straps and mounting screws.
SmartlockPro® GFCI Duplex Receptacle, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Hospital Grade, -35 to 66 deg C, Screw Terminal, Polycarbonate, Light Almond, 4.21 in H x 1.31 in W x 1.19 in D Dimensions

Application

Commercial Applications

Standards

ANSI C-73 | NEMA WD-1/WD-6 | UL 943 Class A | UL498HG | CSA C22.2 File No. 42 | NOM 057 Certified | UL 94 V-2 Flammability Rated

Features

  • GFCI ground fault grounding
  • 10 kA limiting current
  • Max 30 C after 50 cycles OL at 150% rated current temperature rise
  • 5 mA Plus or minus 1 mA trip level
  • Plated brass terminal screw, plated steel grounding screw, galvanized steel clamp nuts, nylon cover, steel strap, 0.031 in THK brass, double wipe line contacts, Silver alloy internal switch contacts
  • Brass-hot, green-ground, silver-neutral terminal ID
  • 14 to 12 AWG terminal accommodation
  • Back and side wired
  • 20 A feed-through

Includes

Nylon Wallplate and Screws

Specifications

Amperage Rating:20 A
Color:Light Almond
Country of Origin:CN
Dimensions:4.21 in H x 1.31 in W x 1.19 in D
Grade:Commercial/Hospital
Horsepower:1 hp
Material:Polycarbonate
NEMA Rating:NEMA 5-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-35 to 66 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
