7899-LI LEV

Product Details

Manufacturer part number:
7899-LI
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Leviton®

Type

Duplex

Description

Leviton® is the leading manufacturer of ground fault circuit interrupters (GFCIs) in the electrical industry. Available in Extra Heavy Duty Hospital and Commercial Spec Grade, they are ideal for a wide range of GFCI applications. Our large selection of GFCIs includes Tamper-Resistant (TR) GFCI devices that meet Section 406.11 of the 2008 code and help protect children from electrical shock. For the highest level of ground fault protection, install 2008 NEC code compliant Weather-Resistant GFCI (WR) receptacles, which meet UL 498 requirements. Built with UV stabilized engineering thermoplastic, the devices have high cold impact resistance and feature stainless steel straps and mounting screws.

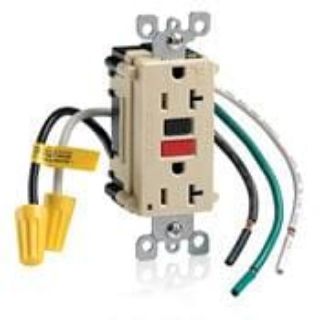

SmartlockPro® GFCI Receptacle, Duplex, 125 VAC, 20 A, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -35 to 66 deg C, Screw Terminal, Thermoplastic, Ivory, 4.21 in H x 1.7 in W x 1.19 in D Dimensions

Application

Commercial Applications

Standards

UL 94 V-2 Flammability Rated | NEMA WD-1/WD-6 | ANSI C-73 | NOM 057 Certified | CSA File No. LR57811 | CSA C22.22 File No. 111 | UL File No. E48380 | UL 943 Class A | UL 498 | UL 20

Includes

6 in Pigtail Wired Leads and Steel Strap

Specifications

Amperage Rating:20 A
Color:Ivory
Country of Origin:CN
Dimensions:4.21 in H x 1.7 in W x 1.19 in D
Grade:Commercial
Material:Thermoplastic
NEMA Rating:NEMA 5-20R
Number of Wires:3
Temperature Rating:-35 to 66 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
