78A15 MSG

Name: 78A15 MSG
Brand: Martin Sprocket & Gear
SKU: 78A15 MSG
Price: 305.43 USD
Availability: OutOfStock

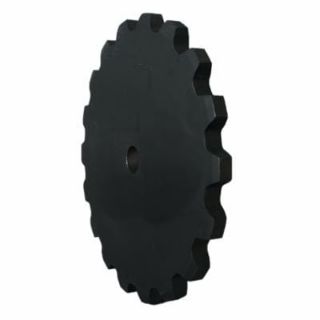

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

78A15

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$305.43 / EA

Description

Brand Name

Martin

Type

Flame Cut Stock Bore Type A

Description

Martin Accu-Torch® steel sprockets are available for virtually all engineering class chains in style A, B, and C. Also available as split with welded hub and split or solid detachable hub. They can also be furnished as shear pin type. Where possible please specify chain number, pitch diameter, number of teeth, bore and keyway size, and hub style required. Accu-Torch® sprockets are not intended to replace cut tooth roller chain sprockets.

Martin Accu-Torch® Engineering Sprocket, Flame Cut Stock Bore Type A, 1-1/2 in Bore Dia, 13-1/4 in Outside Dia, 78 Chain, 15 Teeth, 2.609 in Pitch, 12.549 in, 5-1/2 in Hub Dia, 7/8 in Length Through Bore, Steel

Application

For 7188, 433 1/2, 488, 578 R, 588 R, 75, 78, 81X, 87R, 88, 988, C 188, H 74, H 75, H 78, H 78 LR, (14, 18 teeth only), H 78 RT, H 78 SR, H 79, IS 880, IS 881, IS 882, LXS 881, LXS 882, LXS 886, LXS 887, R 588, R 778, RR 588, RR 778, S 188, S 78, SS 188, US 278 R, US 881, US 882 and XS 578 chains

Features

Manufactured of high carbon steel
Precise machining and processes ensure consistent finish and high quality

Specifications

Bore Diameter:	1-1/2 in
Chain Size:	78
Country of Origin:	US
Hub Diameter:	5-1/2 in
Length Through Bore:	7/8 in
Material:	Steel
Number of Teeth:	15
Outside Diameter:	13-1/4 in
Pitch:	2.609 in
Pitch Diameter:	12.549 in
