78CS11 1 15/16 MSG

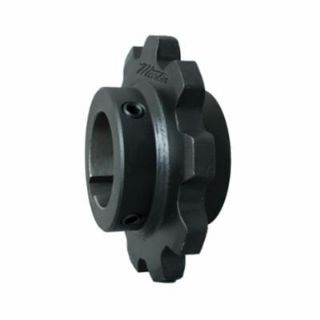

Picture of 78CS11 1 15/16 MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
78CS11 1 15/16
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$502.16 / EA

Description

Brand Name

Martin

Type

Bored-to-Size Solid Hub Type C

Description

Martin Accu-Torch® steel sprockets are available for virtually all engineering class chains in style A, B, and C. Also available as split with welded hub and split or solid detachable hub. They can also be furnished as shear pin type. Where possible please specify chain number, pitch diameter, number of teeth, bore and keyway size, and hub style required. Accu-Torch® sprockets are not intended to replace cut tooth roller chain sprockets.
Martin Accu-Torch® Engineering Sprocket, Bored-to-Size Solid Hub Type C, 1-15/16 in Bore Dia, 9.894 in Outside Dia, 78 Chain, 11 Teeth, 2.609 in Pitch, 9.26 in, 5-1/4 in Hub Dia, 1/2-13 x 1/2 in Screw, 1/2 x 1/4 in Keyway, 3-7/8 in Length Through Bore, Steel

Application

For H124, W124, WS124, WR124 and WH124 chains

Features

  • Teeth are machined chamfered
  • Sprockets held in lathe by outside diameter during boring
  • Increases surface contact on roller
  • Smoother engaging and disengaging of roller/barrel in tooth pocket
  • Bore is concentric to pitch line
  • Longer chain life
  • Longer sprocket life
  • Downtime reduced
  • Revenue increased
  • Manufactured of high carbon steel
  • Precise machining and processes ensure consistent finish and high quality
  • Shaft ready part saves on downtime cost and extra charges

Specifications

Bore Diameter:1-15/16 in
Chain Size:78
Country of Origin:US
Hub Diameter:5-1/4 in
Keyway Size:1/2 x 1/4 in
Length Through Bore:3-7/8 in
Material:Steel
Number of Teeth:11
Outside Diameter:9.894 in
Pitch:2.609 in
Pitch Diameter:9.26 in
Screw Size:1/2-13 x 1/2 in
