78CS9 1 7/16 MSG

Name: 78CS9 1 7/16 MSG
Brand: Martin Sprocket & Gear
SKU: 78CS9 1 7/16 MSG
Price: 451.46 USD
Availability: OutOfStock

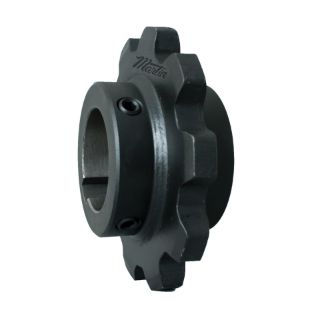

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

78CS9 1 7/16

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$451.46 / EA

Description

Brand Name

Martin

Type

Type C Bored-to-Size

Description

Martin Accu-Torch® steel sprockets are available for virtually all engineering class chains in style A, B, and C. Also available as split with welded hub and split or solid detachable hub. They can also be furnished as shear pin type. Where possible please specify chain number, pitch diameter, number of teeth, bore and keyway size, and hub style required. Accu-Torch® sprockets are not intended to replace cut tooth roller chain sprockets.

Martin Accu-Torch® Flame Cut Sprocket, Type C Bored-to-Size, 1.438 in Bore, 8.176 in OD, #78 Chain, 9 Teeth, 2.609 in Pitch, 7.63 in Pitch Diameter, 5-1/4 in Diameter Hub, 3/8-16 x 3/8 in Screw, 3/8 x 3/16 in Keyway, 3-7/8 in Length Through Bore, Steel

Application

For engineering class and mill chains

Features

Manufactured of high carbon steel
Precise machining and processes ensure consistent finish and high quality

Specifications

Bore Diameter:	1.438 in
Chain Size:	#78
Country of Origin:	US
Hub Diameter:	5-1/4 in
Keyway Size:	3/8 x 3/16 in
Length Through Bore:	3-7/8 in
Material:	Steel
Number of Teeth:	9
Outside Diameter:	8.176 in
Pitch:	2.609 in
Pitch Diameter:	7.63 in
Screw Size:	3/8-16 x 3/8 in
