Home / 78W49-C LEV

78W49-C LEV

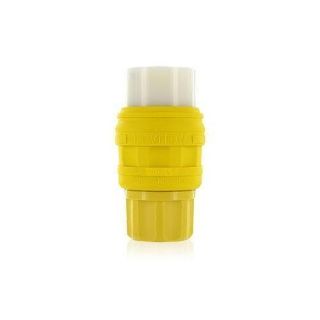

Picture of 78W49-C LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
78W49-C
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$225.26 / EA

Description

Brand Name

Leviton®

Type

1-Phase Cable Mount Watertight

Description

Leviton® Wetguard® products are the most versatile and well engineered watertight wiring devices ON the market. The Wetguard® line consists of a comprehensive array of plugs, connectors, inlets, outlets, covers and rugged FD boxes that allow mounting of 1-gang devices in multi-gang configurations.
Leviton® Wetguard® Locking Connector, 1-Phase Cable Mount Watertight, 277 VAC, 30 A, 2 Poles, 3 Wires, NEMA L7-30R, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 5/8 to 1-1/8 in Cord Dia, -40 to 60 deg C, Screw Terminal, TPV, Yellow, 2.53 in Dia x 4.68 in L

Application

Agriculture, Construction, Food, Beverage Processing and Water Treatment

Standards

ANSI C73 | CSA C22.2 No.42 File No. LR406 | NOM 057 | NEMA WD1/WD6 | UL 498 | UL94 V-2 Flammability Rating

Features

  • Innovative strain relief system and compression nut provide a watertight seal and prevent cord slippage for multiple cord diameters
  • Electroless nickel coated brass blades, contacts, wiring screws and wiring clamps resist corrosion
  • Husk is molded to bondable nylon body to maximize sealing capability
  • High performance elastomer parts resist water and most acids, alkalies, grease, oil and solvents and offers UV stability and resists fungal growth
  • Clear back cover on wiring module for easy inspection of wired terminals
  • Heavy duty, 1-piece contacts for maximum conductivity electrical performance
  • Triple drive screws (Phillips, slotted and Robertson) facilitate proper tightening

Specifications

Amperage Rating:30 A
Color:Yellow
Cord Diameter:0.625 to 1.125 in
Country of Origin:MX
Dimensions:2.53 in Dia x 4.68 in L
Enclosure:NEMA 4/4X/12/IP66
Grade:Industrial
Material:Nylon
NEMA Rating:NEMA L7-30
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Voltage Rating:277 VAC
