790 3.78/1 STD SP 1.750 HUB

Name: 790 3.78/1 STD SP 1.750 HUB
Brand: Hub City
SKU: 790 3.78/1 STD SP 1.750 HUB
Price: 6,926.33 USD
Availability: OutOfStock

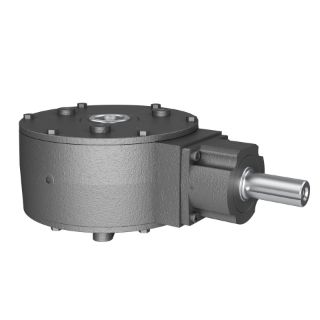

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City , Hub City

Manufacturer part number:

0220-54006

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$6,926.33 / EA

Description

Brand Name

Hub City®

Type

Right Angle Spiral Single Reduction Style STD

Description

Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.

Hub City® Bevel Gear Reducer, Right Angle Spiral Single Reduction Style STD, Series: 790, 3.78:1 Gear Ratio, 39 hp, Shaft Input, Hollow Bore Output, 1-3/8 in Dia x 3 in L Input, 1-3/4 in Dia Output, 463 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 5158 in-lb, 12-1/2 in Centre Distance, 5/16 x 5/32 in Input, 3/8 x 3/16 in Output Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Surface Mount, Cast Iron, 17-13/16 in W x 10-13/16 in D x 6-19/32 in H

Application

Agriculture, Aerospace, Construction, Food Processing, Medical, Material Handling, Packaging, Recreation and Transportation

Standards

AGMA Class 1

Features

Rugged cast iron housing
Shaft mounted for direct mounting on drive shafts
Hub City® "counter flow" bearing lubrication system
Tapered roller bearings
Heavy duty industrial seals

Specifications

Centre Distance:	12-1/2 in
Country of Origin:	US
Dimensions:	17-13/16 in W x 10-13/16 in D x 6-19/32 in H
Efficiency:	97.5 %
Gear Ratio:	3.78:1
Horsepower:	39 hp
Input Maximum Speed:	1750 rpm
Input Size:	1-3/8 in Dia x 3 in L
Input Type:	Shaft
Keyway Size:	5/16 x 5/32 in Input, 3/8 x 3/16 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Mounting Type:	Surface
Output Maximum Speed:	463 rpm
Output Size:	1-3/4 in Dia
Output Type:	Hollow Bore
Series:	790
Torque Rating:	5158 in-lb
