79W07-C LEV

Name: 79W07-C LEV
Brand: Leviton Manufacturing
SKU: 79W07-C LEV
Price: 151.40 USD
Availability: OutOfStock

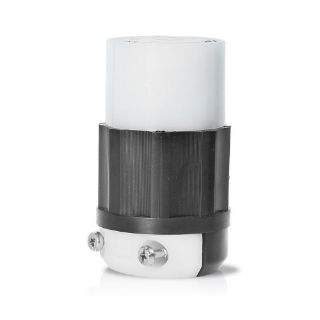

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

79W07-C

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$151.40 / EA

Description

Brand Name

Leviton®

Type

Non-Grounding

Description

Leviton®, 79W07-C, Straight Blade Connector, Non-Grounding, 125/250 VAC, 15/10 A, 3 Pole, 3 Wires, NEMA 4/4X/12 NEMA Rating, Industrial Grade, IP66 Enclosure, 0.234 to 0.687 in Diameter Cord, -40 to 60 deg F, Threaded Terminal, Nylon, Yellow, 1.5 in Dia x 3.45 in L Dimensions

Standards

Features

Withstands 2000 V per UL 498 dielectric voltage
Full rated current
Maximum 30 cycles after 250 cycles OL at 200% rated current temperature rise
Flammability rated UL 94-V2
Santoprene TPV husk and bushing
Nylon wiring module, compression nut and strain relief clamp
Electroless nickel coated brass terminal screws
Stainless steel and non-magnetic assembly screws
18 to 10 AWG terminal
Ratings and NEMA ID permanently marked on device
Surface mount
For single inlet
Single phase
Non-NEMA
S/ST/SO/SVT/SOW/SJ/SJT/SJTO/SJTOW cord
18 to 10 AWG terminal accommodation
Non-NEMA rated

Specifications

Amperage Rating:	15/10 A
Color:	Yellow
Cord Diameter:	0.234 to 0.687 in
Country of Origin:	MX
Dimensions:	1.5 in Dia x 3.45 in L
Enclosure:	IP66
Grade:	Industrial
Material:	Nylon
NEMA Rating:	NEMA 4/4X/12
Number of Poles:	3
Number of Wires:	3
Temperature Rating:	-40 to 60 deg F
Terminal Type:	Threaded
Voltage Rating:	125/250 VAC
