7A3000-32 WOO

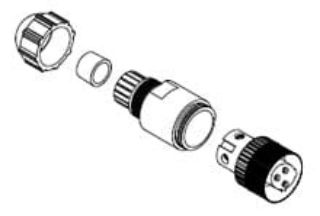

Picture of 7A3000-32 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex/Woodhead
Manufacturer part number:
7A3000-32
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$47.05 / EA

Description

Brand Name

Brad®

Type

Female Straight Internal Thread

Description

Micro-Change® (M12) connectors are designed to withstand harsh industrial and weather environments with superior quality that assures very reliable connections for control elements in automated equipment. These high quality connectors allow fast and simple replacement of sensors, encoders, switches and other input and output devices in industrial machinery.
Brad® Micro-Change® Field Attachable Connector, Female Straight Internal Thread, Series: 120075, 250 VAC/300 VDC, 4 A, 18 AWG Cable, 1.95 in Length, Black Nylon Insert, Brass Coupling Nut, Polyamide Shell, 1/2-20 UNF Thread, Environmental Conditions: -25 to 90 deg C Temperature, IP67 deg of Protection

Application

Construction and Mining Equipment, Sensor, Machine Lighting, Standard Industrial Lighting, C4ISR, Ground Vehicle Network, Shelter, Automated Assembly Equipment, Conveyor System, Material Handling, Packaging Equipment and Pick and Place Robot

Features

  • Industry standard interface compatible with a wide array of sensors and switches
  • Ideal for class 2 power and network circuit applications
  • Provides a longer lasting, high performance electrical contact
  • Prevents the coupler from loosening even under extreme vibration
  • 18 AWG wire
  • Internal thread coupling
  • -25 to 90 deg C operating temperature
  • Copper contact material, gold over nickel plating mating material
  • 4.1 to 8.1 mm Dia cable

Specifications

Amperage Rating:4 A
Cable Size:18 AWG
Country of Origin:DE
Coupling Nut Material:Brass
Environmental Conditions:-25 to 90 deg C Temperature, IP67 deg of Protection
Insert Material:Black Nylon
Length:1.95 in
Series:120075
Shell Material:Polyamide
Thread Size:1/2-20 UNF
Voltage Rating:250 VAC/300 VDC
