7A3007-31 WOO

Name: 7A3007-31 WOO
Brand: Molex/Woodhead
SKU: 7A3007-31 WOO
Price: 32.46 USD
Availability: OutOfStock

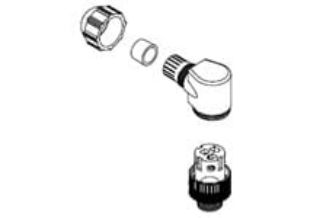

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex/Woodhead

Manufacturer part number:

7A3007-31

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$32.46 / EA

Description

Brand Name

Brad®

Type

3-Pole Dual Keyway Internal Thread Field Attachable

Description

Brad® Micro-Change® Male Right Angle Connector, 3-Pole Dual Keyway Internal Thread Field Attachable, Series: 120075, 250 VAC/300 VDC, 4 A, PA Cable, 3.3 to 6.6 in OD Cable, 1.37 in Length, Nitrile O-Ring, Nylon Insert, Nylon Overmold, Nickel Plated Brass Coupling Nut, 1/2-20 UNF Thread, Environmental Conditions: IP67, -20 to 90 deg C Operating

Standards

RoHS Complient

Features

Allows field termination of cables to 1/2-20 UNF-dual key connector
Preassembled contact carries with screw terminals provides easy field termination of conductors
Back end housing and cable gland provides IP67 protection and strain-relief
PA connector body
Brass contact
0.13 to 0.26 in cable diameter
External thread coupling
Dual keyway
-25 to 90 deg C temperature
3-poles
Gold over nickel plated mating

Specifications

Amperage Rating:	4 A
Cable Size:	18 AWG
Cable Type:	PA
Country of Origin:	DE
Coupling Nut Material:	Brass
Environmental Conditions:	IP67
Insert Material:	Nylon
Length:	1.37 in
O-Ring Material:	Nitrile
Overmold Material:	Nylon
Series:	120075
Thread Size:	1/2-20 UNF
Voltage Rating:	250 VAC/300 VDC
