7AS10C OZG

Name: 7AS10C OZG
Brand: Appleton
SKU: 7AS10C OZG
Price: 3,358.30 USD
Availability: OutOfStock

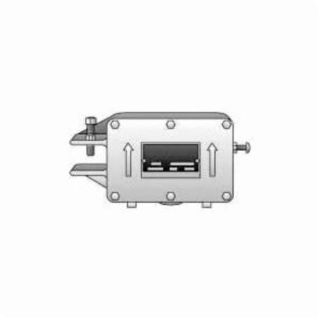

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

7AS10C

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$3,358.30 / EA

Description

Brand Name

O-Z/Gedney

Description

The Inertia switch is a unidirectional shut down device that operates upon sharp impact and provides protection for oil well pumping units. When installed properly, the switch will shut down the pump engine or motor upon impact occurring from sucker rod breakage. The switch should be located at a position subject to maximum shock forces. It should never be installed immediately adjacent to bearing surfaces.

O-Z/Gedney Inertia Switch, Series: 7A, For Use With: Oil Well Pumping Unit, 1NO/1NC, 8-3/4 in L x 4-3/4 in W x 2-5/8 in H, Domestic

Application

For shut down switch that operates upon sharp impact, disconnects oil well pump engine or motor upon impact occurring from sucker rod breakage

Standards

UL 698 | NEMA 7D | Buy American Act Compliant

Features

External adjustment screw varies the impact trip level of the switch
Correctly adjusted switch prevents tripping on start up and during normal operation, but trips upon malfunction
Switch should be located at a position subject to maximum shock forces
Switch should never be installed immediately adjacent to bearing surfaces
2-poles

Specifications

Country of Origin:	US
Dimensions:	8-3/4 in L x 4-3/4 in W x 2-5/8 in H
Domestic/Import:	Domestic
Series:	7A
Specifications:	1NO/1NC
Suitable For Use With:	Oil Well Pumping Unit
