7AS20C OZG

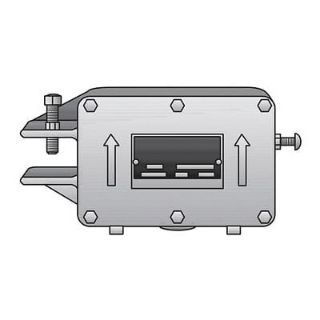

Picture of 7AS20C OZG
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
7AS20C
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,304.72 / EA

Description

Brand Name

O-Z/Gedney

Type

Unidirectional

Description

O-Z/Gedney Class 530 inertia switches are unidirectional shut down devices that operate upon sharp impact and provide protection for oil well pumping units. When installed properly, the switch will shut down the pump engine or motor upon impact occurring from sucker rod breakage. An external adjustment screw varies the impact trip level of the switch. The desired setting should prevent tripping on startup and normal operation, but trip upon malfunction.
O-Z/Gedney Pump Engine Inertia Switch, Unidirectional, Series: 7A, Snap Switch, 115/230/460 VAC, 230 VDC, Domestic

Application

For oil well pumping units

Standards

BAA Compliant | NEC Class I, Division 1 and 2, Group D, Class I, Zone 1 and 2, Group IIA, Class II, Division 1 and 2, Groups E, F, G, Class III | NEMA 7D, 9EFG | Buy American Act Compliant

Features

  • The switch should be located at a position subject to maximum shock forces
  • The switch should never be installed immediately adjacent to bearing surfaces
  • 20 A at 230 VAC contact
  • 0.5 A at 115 VDC contact
  • 2NO-2NC contact configuration
  • NEMA 7 enclosure

Specifications

Country of Origin:US
Domestic/Import:Domestic
Series:7A
Switch Type:Snap
Voltage Rating:115/230/460 VAC, 230 VDC
