7C120R BRN

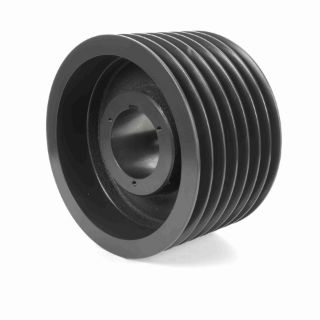

Picture of 7C120R BRN
Actual Product May Vary From Image

Product Details

Manufacturer:
Regal Rexnord
Manufacturer part number:
1012848
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Browning®

Type

Type 15 Web

Description

Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
Browning® Multiple Sheave, Type 15 Web, Split Taper Bore, 1.38 to 3.625 in Bore, 12.4 in OD, 12.4 in Pitch Diameter, 7 Grooves, 7-1/4 in Face Width, R2 Bushing, 7-1/4 in Overall Length, For Use With: GripBelt® C Cross Section V-Belt, Cast Iron

Application

Aggregate, Cement, Agriculture, Coal Power Generation, Forestry, HVAC, Minerals, Mining, Pulp, Paper and Unit Handling Industries

Standards

ABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards

Features

  • Incorporates Browning® Split-Taper® bushing the only bushing system that provides a true key-to-key drive to both the shaft and the hub
  • All sheaves are statically balanced to assure smooth and vibration free performance
  • Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible

Specifications

Bore Diameter:1.38 to 3.625 in
Bore Type:Split Taper
Bushing Type:R2
Country of Origin:MX
Face Width:7-1/4 in
Material:Cast Iron
Number of Grooves:7
Outside Diameter:12.4 in
Overall Length:7-1/4 in
Pitch Diameter:12.4 in
Suitable For Use With:GripBelt® C Cross Section V-Belt
