7F EB FF FB KOP

Name: 7F EB FF FB KOP
Brand: Regal Rexnord
SKU: 7F EB FF FB KOP
Price: 35,458.34 USD
Availability: OutOfStock

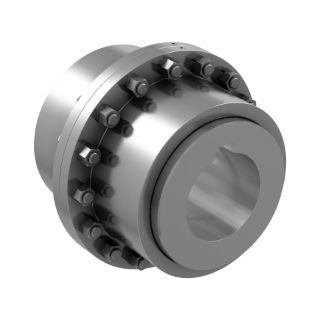

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

2275824

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$35,458.34 / EA

Description

Brand Name

Kop-Flex®

Type

Type EB Finished Bore

Description

The all metal end ring, used exclusively in FAST'S® couplings, eliminates the need for any type of perishable lube seal. The end ring not only provides an escape route for lubricant, but it also pilots the sleeve during start-up and shut-down operations. It further eliminates partial tooth disengagement with resulting tooth overloads by providing sleeve teeth. The sleeve teeth are flush against the inside wall of the end ring.

Kop-Flex® FAST'S® Gear Coupling, Type EB Finished Bore, 8 in Bore, 20-3/4 in OD, 17-5/16 in Overall Length, Full Flex Hub, 10.313 in Hub, 8-11/16 in Length Through Bore, 1160000 in-lb Continuous/2320000 in-lb Peak Torque, 3000 rpm Maximum, 160 hp Power, 1 in Dia x 3-5/8 in L Bolt, 16 Bolts, -40 to 190 deg F

Application

Aggregate, Cement, Coal Power Generation, Cranes, Hoists, HVAC, Marine, Metals, Minerals, Mining, Pulp, Paper, Unit Handling, Water and Wastewater Industries

Features

Size 7 coupling
All metal end ring seal design for maximum service life
Provides 300% greater lubricant capacity than O-ring style couplings
Greater lubricant capacity allows longer periods between scheduled lubrications and longer service life
Straight tooth design provides improved load distribution, lower stresses and longer life for the gear teeth
The industry standard for over 75 years

Specifications

Bolt Size:	1 in Dia x 3-5/8 in L
Bore Diameter:	8 in
Hub Size:	10.313 in
Hub Type:	Full Flex
Length Through Bore:	8-11/16 in
Maximum Speed:	3000 rpm
Number of Bolts:	16
Outside Diameter:	20-3/4 in
Overall Length:	17-5/16 in
Power Rating:	160 hp
Temperature Rating:	-40 to 190 deg F
Torque Rating:	1160000 in-lb Continuous/2320000 in-lb Peak
