7H 1 5/8 MSG

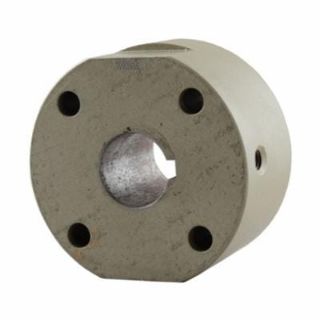

Martin Quadra-Flex® 7H 1 5/8 Bored-to-Size Type SC Spacer Coupling Hub, 07 Coupling, 1-5/8 in Dia Bore, 1.469 in L Through Bore, 2-13/16 in Dia Hub, Steel
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 7H 1 5/8
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
1 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$56.35

Product Details

Brand Name

Martin

Type

Bored-to-Size Type SC

Description

Martin Quadra-Flex® is a proven design which offers long life, torsional flexibility, ease of installation and withstands misalignment, shock and vibration. Available in sizes 3 to 16 in bored to size, QD bushed, spacer type and plain bore for custom requirements.
Martin Quadra-Flex® Spacer Coupling Hub, Bored-to-Size Type SC, 07 Coupling, 1-5/8 in Bore Dia, 2-13/16 in Hub Dia, 3/8 x 3/16 in Keyway, 5250 rpm Maximum, 1.469 in Length Through Bore, 3/8-16 x 3/8 in Screw, Steel

Specifications

Bore Diameter:1-5/8 in
Country of Origin:US
Coupling Size:07
Hub Diameter:2-13/16 in
Keyway Size:3/8 x 3/16 in
Length Through Bore:1.469 in
Material:Steel
Maximum Speed:5250 rpm
Screw Size:3/8-16 x 3/8 in
