7H EB FF KOP

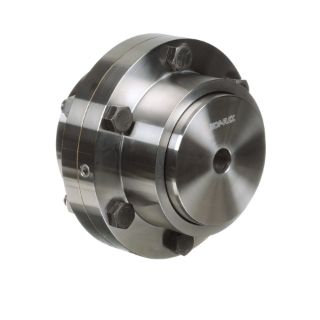

Picture of 7H EB FF KOP
Actual Product May Vary From Image

Product Details

Manufacturer:
Regal Rexnord
Manufacturer part number:
2274884
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Kop-Flex®

Type

Type EB

Description

A conventional 4 bearing system has 2 bearings on the driving shaft and two bearings on the driven shaft. Both angular and offset shaft misalignment will be present to some deg and a full flex coupling is mandatory. The full flex coupling is the standard coupling having two gear ring sets, one set per half coupling.
Kop-Flex® Gear Coupling, Type EB, Series: H Series, 10-3/8 in Bore, 20-3/4 in OD, 17-3/4 in Overall Length, Full Flex Hub, 13-1/2 in Hub, 8.688 in Length Through Bore, 1160000 in-lb Continuous/2320000 in-lb Peak Torque, 3000 rpm Maximum, 1840 hp Power, 1 in Dia x 3-5/8 in L Bolt, 16 Bolts, -40 to 190 deg F

Application

Aggregate, Cement, Coal Power Generation, Cranes, Hoists, HVAC, Marine, Metals, Minerals, Mining, Pulp, Paper, Unit Handling, Water and Wastewater Industries

Features

  • Size 7 coupling
  • Large bore capacity with O-ring seal design and the most economical gear coupling design
  • Curved face teeth (sizes 1 through 7) for up to 1.5 deg static misalignment capability
  • Series H coupling sleeves will bolt to all competitor couplings sizes 1 through 7 for interchangeability in flex halves
  • Precision drilled flange bolt holes with special body-fitting, grade 5 bolts for a long-lasting piloted flange connection
  • Large gear tooth pitch diameter with high torque capacity
  • Close fitting, tight tolerance flange holes and bolt holes
  • Grease lubrication required
  • The most economical gear coupling design

Specifications

Bolt Size:1 in Dia x 3-5/8 in L
Bore Diameter:10-3/8 in
Hub Size:13-1/2 in
Hub Type:Full Flex
Length Through Bore:8.688 in
Maximum Speed:3000 rpm
Number of Bolts:16
Outside Diameter:20-3/4 in
Overall Length:17-3/4 in
Power Rating:1840 hp
Series:H Series
Temperature Rating:-40 to 190 deg F
Torque Rating:1160000 in-lb Continuous/2320000 in-lb Peak
