7H EB SSFF FB KOP

Name: 7H EB SSFF FB KOP
Brand: Regal Rexnord
SKU: 7H EB SSFF FB KOP
Availability: OutOfStock

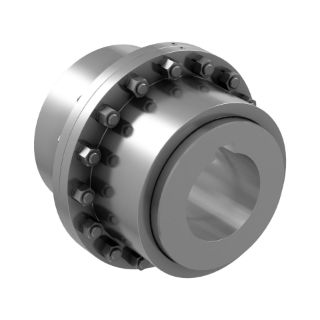

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

2297190

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Kop-Flex®

Type

Type EB Finished Bore

Description

The series H slide coupling is designed for drive systems that require greater end float or slide than a conventional application. Spacer couplings, floating shaft arrangements, and most coupling types can be supplied with a slide flex half in one or both flex half couplings. For flex-rigid arrangements used in floating shaft couplings, a stop plate is not required and a standard EB fastener set (FS) is used.

Kop-Flex® Gear Coupling, Type EB Finished Bore, Series: H Series, 4-7/8 in Bore, 20-3/4 in OD, Short Slide Full Flex Hub, 8.688 in Length Through Bore, 1160000 in-lb Continuous/2320000 in-lb Peak Torque, 3000 rpm Maximum, 1840 hp Power, 1 in Dia x 3-5/8 in L Bolt, 16 Bolts, -40 to 190 deg F

Application

Aggregate, Cement, Coal Power Generation, Cranes, Hoists, HVAC, Marine, Metals, Minerals, Mining, Pulp, Paper, Unit Handling, Water and Wastewater Industries

Features

Size 7 coupling
Large bore capacity with O-ring seal design and the most economical gear coupling design
Curved face teeth (sizes 1 through 7) for up to 1.5 deg static misalignment capability
Series H coupling sleeves will bolt to all competitor couplings sizes 1 through 7 for interchangeability in flex halves
Precision drilled flange bolt holes with special body-fitting, grade 5 bolts for a long-lasting piloted flange connection
Large gear tooth pitch diameter with high torque capacity
Close fitting, tight tolerance flange holes and bolt holes
The most economical gear coupling design

Specifications

Bolt Size:	1 in Dia x 3-5/8 in L
Bore Diameter:	4-7/8 in
Hub Type:	Short Slide Full Flex
Length Through Bore:	8.688 in
Maximum Speed:	3000 rpm
Number of Bolts:	16
Outside Diameter:	20-3/4 in
Power Rating:	1840 hp
Series:	H Series
Temperature Rating:	-40 to 190 deg F
Torque Rating:	1160000 in-lb Continuous/2320000 in-lb Peak
