7JE SLEEVE LOV

Name: 7JE SLEEVE LOV
Brand: Lovejoy
SKU: 7JE SLEEVE LOV
Price: 46.19 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Lovejoy

Manufacturer part number:

68514435570

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$46.19 / EA

Description

Brand Name

Lovejoy®

Type

1-Piece Solid

Description

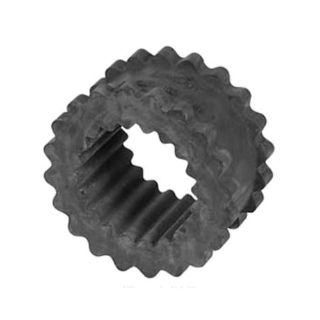

Lovejoy® Elastomer Sleeve, 1-Piece Solid, 7JE Coupling, 2.19 in Length, 5/8 to 1-5/8 in ID, 4.34 in OD, 940 in-lb Torque, 5250 rpm Maximum, For Use With: S-Flex Endurance™ Coupling, -30 to 375 deg F, EPDM, Black

Standards

Features

The one-piece split design provides solutions for applications with unique requirements where small shaft separations inhibit the installation of a one-piece solid sleeve
Pre-molded teeth along the diameter of the sleeve engage with teeth of the coupling flanges
No clamps or screws are needed to connect the flanges with the flexible sleeve which securely lock together under torque for smooth transmission of power
Torque is transmitted through shear loading of the sleeve
All three sleeve materials are highly elastic which permits the S-Flex coupling to protect connected equipment from harmful shock loading, vibration and shaft misalignment
Unless otherwise specified, S-Flex Endurance™ couplings are supplied with EPDM flexible sleeves
EPDM has good resistance to commonly used chemicals and is generally not affected by dirt or moisture
These sleeves feature a one-piece design molded in EPDM and neoprene rubber

Specifications

Country of Origin:	US
Coupling Size:	7JE
Finish:	Black
Inside Diameter:	5/8 to 1-5/8 in
Length:	2.19 in
Material:	EPDM
Maximum Speed:	5250 rpm
Outside Diameter:	4.34 in
Suitable For Use With:	S-Flex Endurance™ Coupling
Temperature Rating:	-30 to 375 deg F
Torque Rating:	940 in-lb
