7N SLEEVE LOV

Name: 7N SLEEVE LOV
Brand: Lovejoy
SKU: 7N SLEEVE LOV
Price: 81.74 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Lovejoy

Manufacturer part number:

68514436416

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$81.74 / EA

Description

Brand Name

Lovejoy®

Type

2-Piece

Description

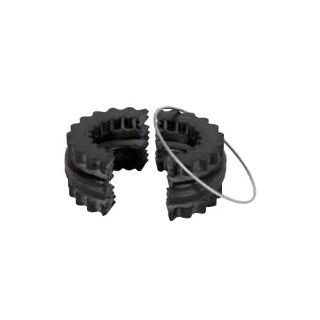

Lovejoy® Elastomer Sleeve, 2-Piece, 7N Coupling, 2.19 in Length, 5/8 to 1-5/8 in ID, 4.34 in OD, 725 in-lb Torque, 5250 rpm Maximum, For Use With: S-Flex Endurance™ Coupling, 0 to 200 deg F, Neoprene, Black/Green

Standards

Features

Pre-molded teeth along the diameter of the sleeve engage with teeth of the coupling flanges
No clamps or screws are needed to connect the flanges with the flexible sleeve which securely lock together under torque for smooth transmission of power
Torque is transmitted through shear loading of the sleeve
All three sleeve materials are highly elastic which permits the S-Flex coupling to protect connected equipment from harmful shock loading, vibration and shaft misalignment
Neoprene provides very good performance characteristics for most applications and offers a very good resistance to chemical and oil conditions
Color is black with a green dot
The E-type is molded in EPDM rubber
The two-piece design is ideal for applications where there is difficulty in separating the shafts of the driver and driven

Specifications

Country of Origin:	US
Coupling Size:	7N
Finish:	Black/Green
Inside Diameter:	5/8 to 1-5/8 in
Length:	2.19 in
Material:	Neoprene
Maximum Speed:	5250 rpm
Outside Diameter:	4.34 in
Suitable For Use With:	S-Flex Endurance™ Coupling
Temperature Rating:	0 to 200 deg F
Torque Rating:	725 in-lb
