Home / 7R6A00A19A120 WOO

7R6A00A19A120 WOO

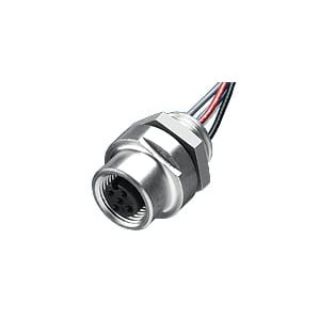

Picture of 7R6A00A19A120 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex/Woodhead
Manufacturer part number:
120074-0232
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Woodhead®

Type

Single Ended

Description

Woodhead® Micro-Change® Female Receptacle, Single Ended, Series: 120074, 250 VAC/VDC, 4 A, NEMA 6/IP67, Aluminum, Red/White/Green/Yellow/Black/Blue, 0.305 m L

Standards

CSA LR6837 | UL E152210

Features

  • 6 poles
  • 22 AWG PVC wire
  • 1/4-18 NPT mounting thread
  • 1/2-20 UNF-dual keyway
  • Straight orientation
  • Gray anodized aluminum shell
  • Internal thread coupling
  • Front panel mount
  • -20 to 80 deg C operating

Specifications

Amperage Rating:4 A
Color:Red/White/Green/Yellow/Black/Blue
Dimensions:0.305 m L
Material:Aluminum
NEMA Rating:NEMA 6/IP67
Series:120074
Voltage Rating:250 VAC/VDC
