7SBT12 TKN

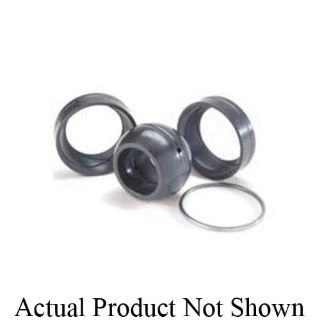

Picture of 7SBT12 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
7SBT12
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$187.40 / EA

Description

Brand Name

Timken®

Type

Type SBT

Description

Timken® SBT angular contact thrust spherical plain bearings feature lubricating holes and grooves in the outer ring for easy relubrication through the housing. These designs allow for thrust loading and some misalignment. The SBT type is designed for single-direction thrust loading. Also, the raceways are hemispherical, and the rings are designed to provide maximum spherical raceway contact in the axial direction, which results in reliable and durable performance.
Timken® Angular Contact Spherical Plain Bearing, Type SBT, 3/4 in Bore Dia, 1-1/4 in Outside Dia, 0.44 in W, Unsealed Closure, 4500 lb Dynamic/11100 lb Static, Hardened Steel Bearing, 392 deg F, Molybdenum Disulfide Coated

Application

Bulldozers, Hydraulic Excavators, Heavy Movable Structures, Mining Trucks, Space Shuttles and Miscellaneous Vehicles

Features

  • Rings manufactured from hardened steel help deliver consistent, reliable performance
  • Phosphate-treated rings coated with molybdenum disulfide (MoS2) minimize friction of contacting surfaces
  • Simplified housing and shaft designs reduce installation time

Specifications

Bearing Material:Hardened Steel
Bore Diameter:3/4 in
Closure Type:Unsealed
Finish:Molybdenum Disulfide Coated
Load Capacity:4500 lb Dynamic/11100 lb Static
Outside Diameter:1-1/4 in
Temperature Rating:392 deg F
Width:0.44 in
