7T15/16 BOS

Name: 7T15/16 BOS
Brand: Boston Gear
SKU: 7T15/16 BOS
Availability: OutOfStock

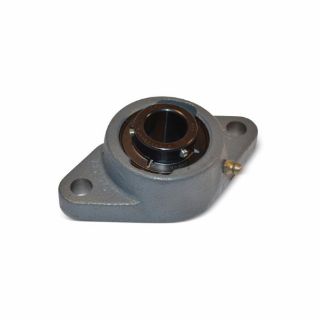

Actual Product May Vary From Image

Product Details

Manufacturer:

Boston Gear

Manufacturer part number:

7T 1-5/16

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Boston Gear®

Type

Standard-Duty

Description

Boston Gear® comprehensive selection of flanged bearings includes spherical bearings with extended inner races featuring setscrews or eccentric locking collars in stamped steel, ductile iron, cast iron or stainless housings. Positive locking by setscrews or an eccentric locking collar ensures smooth operation and a synthetic lip-type seal with steel flingers offer enhanced seal effectiveness.

Boston Gear® Flange Mount Ball Bearing Unit, Standard-Duty, Series: T Series, 1-5/16 in Bore, 5-1/8 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 6-1/8 in Overall Length/Diameter, 2-1/8 in Overall Depth, 3-11/64 in Overall Height, Eccentric Collar Locking Device, Cast Iron Bearing, Synthetic Seal, 900 lb Load, 4000 rpm Maximum, 225 deg F, Uncoated

Application

Material Handling, Packaging Machinery, Shrink Wrap Machinery and Printing Press Applications

Standards

PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.

Features

Rigid one piece high housing
Chrome alloy steel balls and spherical outer race
1/4-28 threaded grease fitting and channel through outer race allow relubrication

Specifications

Bearing Material:	Cast Iron
Bolt Center-to-Center Length:	5-1/8 in
Bore Diameter:	1-5/16 in
Country of Origin:	US
Finish:	Uncoated
Flange Mounting Type:	2-Bolt
Load Capacity:	900 lb
Locking Device:	Eccentric Collar
Maximum Speed:	4000 rpm
Overall Depth:	2-1/8 in
Overall Height:	3-11/64 in
Overall Length/Diameter:	6-1/8 in
Seal Material:	Synthetic
Series:	T Series
Temperature Rating:	225 deg F
