7W EB FF FB KOP

Name: 7W EB FF FB KOP
Brand: Regal Rexnord
SKU: 7W EB FF FB KOP
Availability: OutOfStock

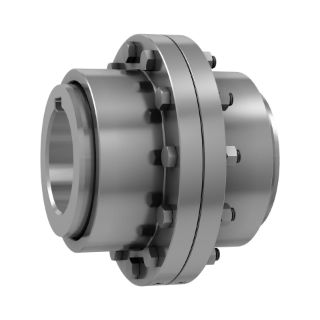

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

2281103

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Kop-Flex®

Type

Type EB Finished Bore

Description

A conventional 4 bearing system has 2 bearings on the driving shaft and two bearings on the driven shaft. Both angular and offset shaft misalignment will be present to some deg and a full flex coupling is mandatory. The full flex coupling is the standard coupling having two gear ring sets, one set per half coupling.

Kop-Flex® Waldron®Flexalign® Gear Coupling, Type EB Finished Bore, 9-1/4 in Bore, 20-3/4 in OD, 14-3/4 in Overall Length, Full Flex Hub, 13-1/4 in Hub, 8-11/16 in Length Through Bore, 1010000 in-lb Continuous/2020000 in-lb Peak Torque, 3500 rpm Maximum, 1600 hp Power, 1 in Dia x 3-5/8 in L Bolt, 16 Bolts

Application

Aggregate, Cement, Coal Power Generation, Cranes, Hoists, HVAC, Marine, Metals, Minerals, Mining, Pulp, Paper, Unit Handling, Water and Wastewater Industries

Features

Size 7 coupling
Unique 40 deg tooth form distributes loads over a larger area than a 20 deg tooth
Curved face teeth (sizes 1 through 7) for up to 1.5 deg static misalignment capability
Unique, high misalignment seal design superior to standard O-rings
Improved soft seal
Corrosion resistant
Flangeless and continuous sleeve design
Grease lubrication required

Specifications

Bolt Size:	1 in Dia x 3-5/8 in L
Bore Diameter:	9-1/4 in
Hub Size:	13-1/4 in
Hub Type:	Full Flex
Length Through Bore:	8-11/16 in
Maximum Speed:	3500 rpm
Number of Bolts:	16
Outside Diameter:	20-3/4 in
Overall Length:	14-3/4 in
Power Rating:	1600 hp
Torque Rating:	1010000 in-lb Continuous/2020000 in-lb Peak
