7W FHUB KOP

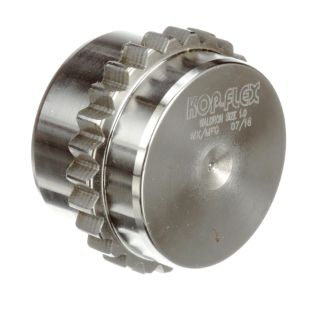

Picture of 7W FHUB KOP
Actual Product May Vary From Image

Product Details

Manufacturer:
Regal Rexnord
Manufacturer part number:
1967207
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Kop-Flex®

Description

Kop-Flex® Flexible Hub, 7 Coupling, 9-1/4 in Bore Dia, 13-1/4 in Hub Dia, 8-11/16 in Hub Length, 2200 rpm Maximum, 8-11/16 in Length Through Bore, Carbon Steel

Application

For use with Waldron® gear coupling

Features

  • Unique 40 deg tooth form distributes loads over a larger area than a 20 deg tooth
  • Curved face teeth (sizes 1 through 7) for up to 1.5 deg static misalignment capability
  • Optional pilot rings provide a positive piloted connection between sleeves and/or rigid
  • Improved soft seal
  • Quality exposed fasteners
  • Corrosion resistant
  • Unique, high misalignment seal design superior to standard O-rings

Specifications

Bore Diameter:9-1/4 in
Country of Origin:MX
Coupling Size:7
Hub Diameter:13-1/4 in
Hub Length:8-11/16 in
Length Through Bore:8-11/16 in
Material:Carbon Steel
Maximum Speed:2200 rpm
